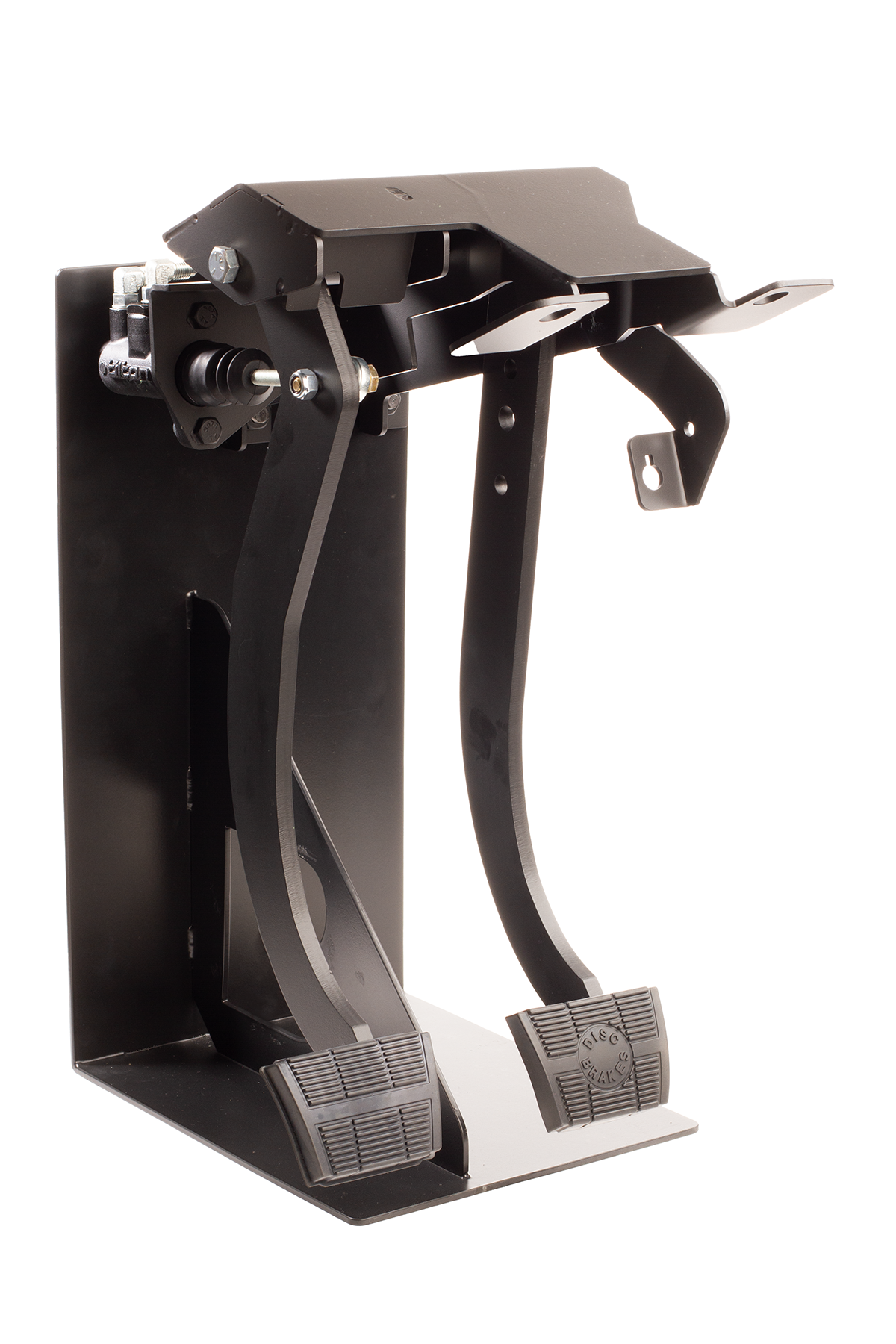

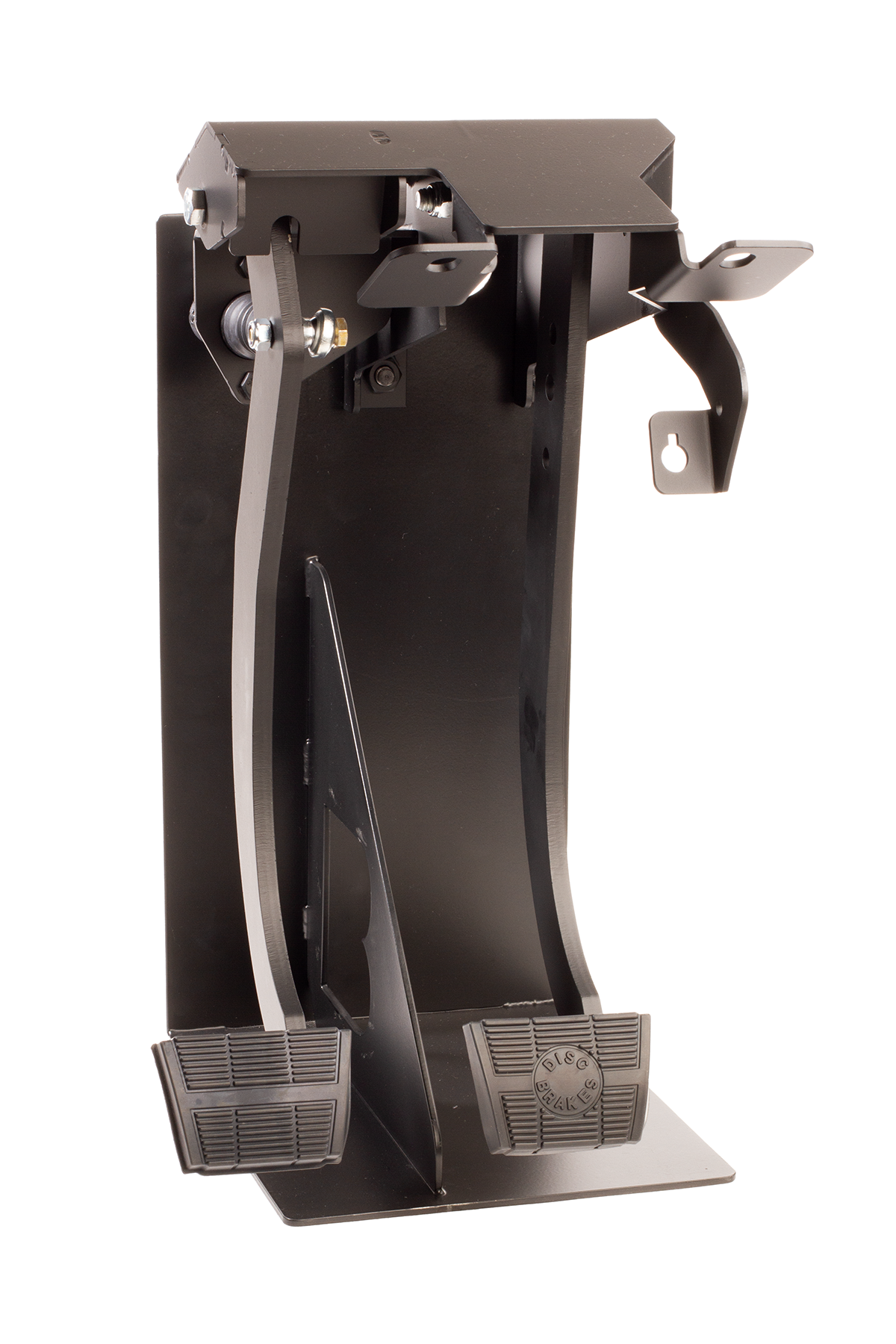

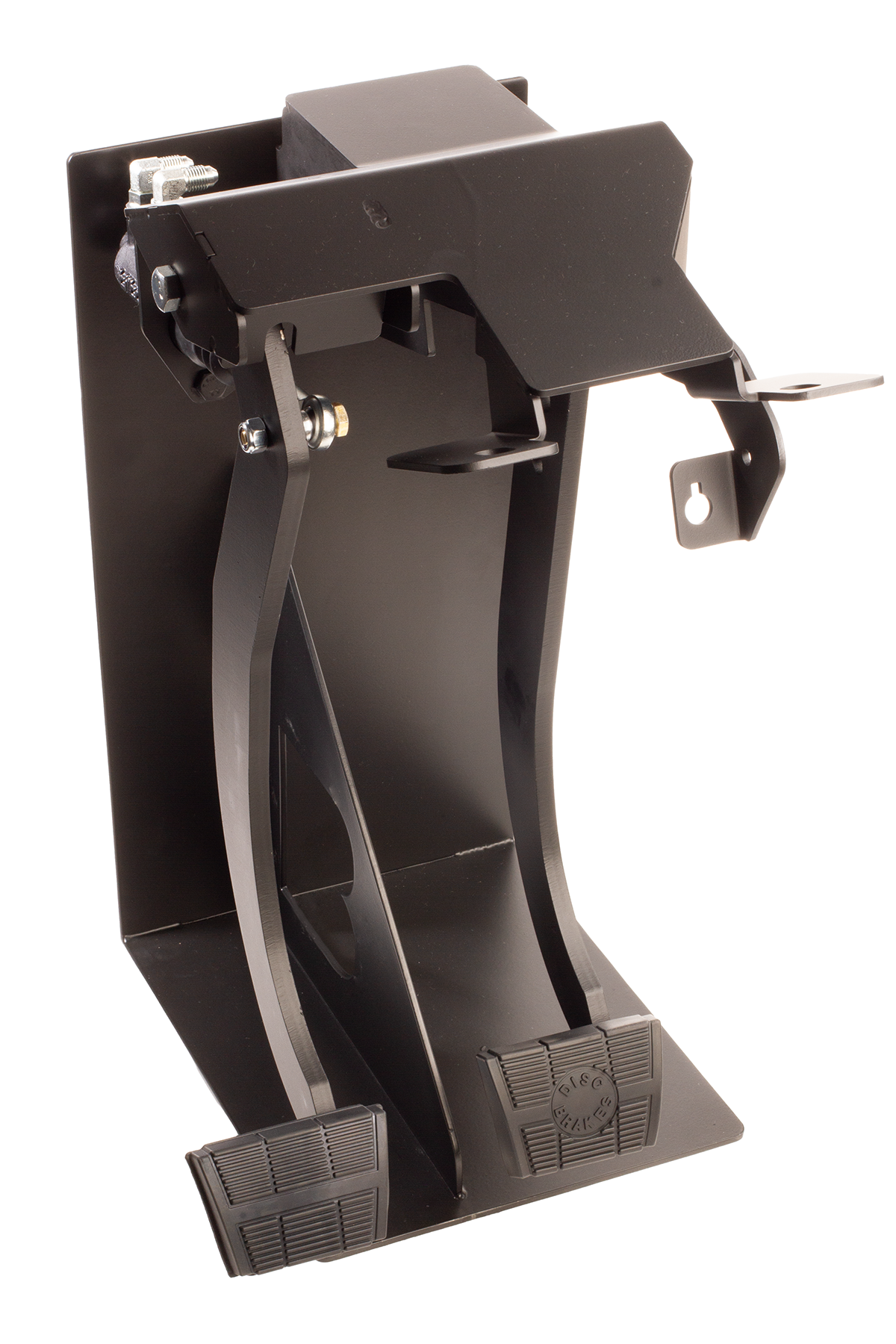

73-87 C10 Hydraulic Pedal Assembly

For years companies have offered fairly comprehensive manual transmission packages.  They include the transmission, bellhousing, clutch, shifter, even master and slave cylinders.  However, perfecting the pedal ratio, selecting the correct bore master cylinder, and mounting everything correctly leaves too much room for error.  In an effort to save time and get you on the road with much less headache we have developed a better solution.  We now offer a complete bolt in pedal assembly with integrated hydraulics.  You simply drop your steering column, install the pedal assembly, connect the hoses, bleed the system, and start bangin gears!

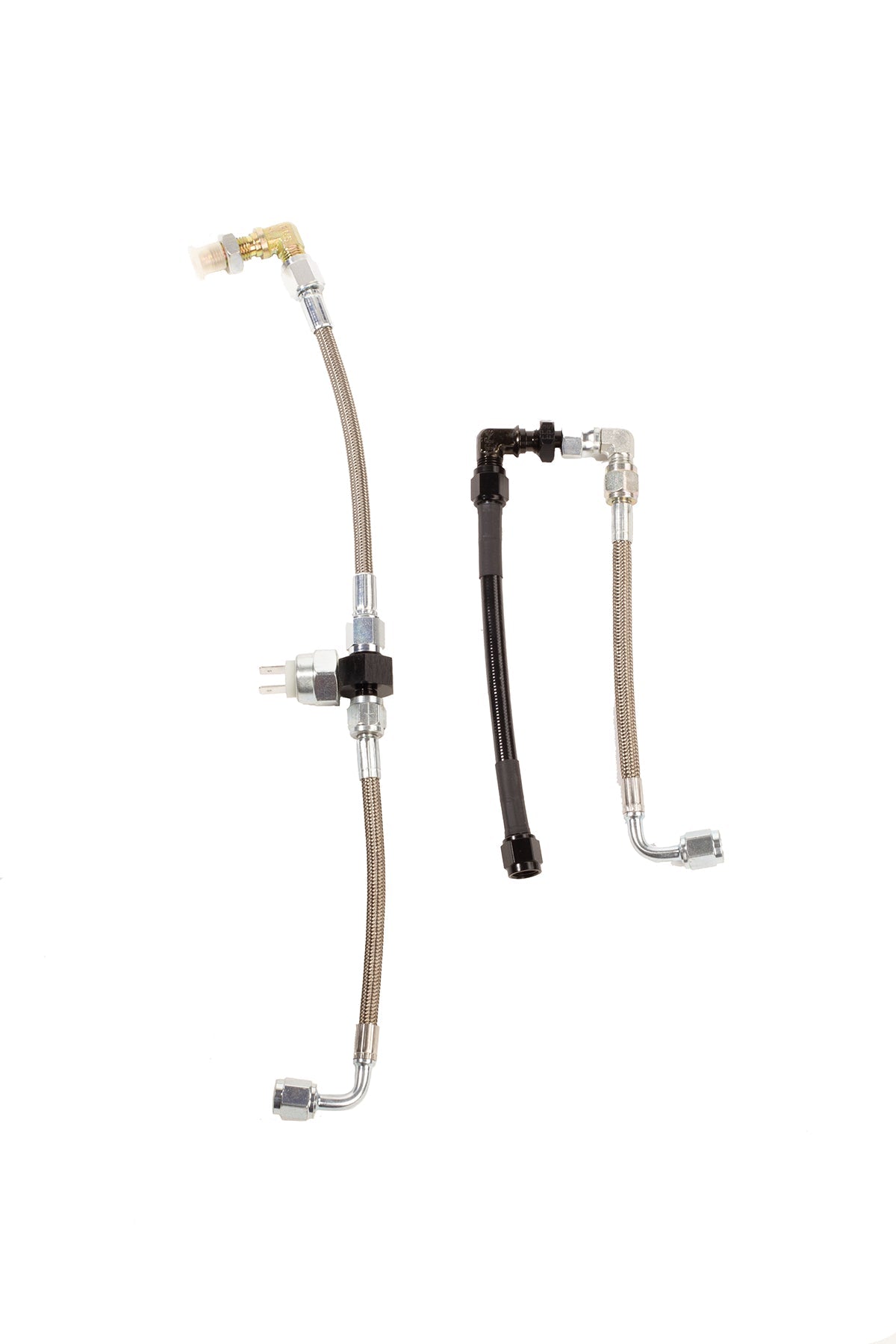

They include all of the necessary hoses and fittings, Tilton master cylinder, billet remote reservoir, and the new pedal assembly.  The pedal assemblies are manufactured right here in Illinois and are assembled with new pedal pads, pivot bushings, and hardware.  Powder coated satin black and are available with OE style pedal pads.

• Made in the USA
• Powder Coated Satin Black
• New Pedal Pads
• Tilton Master Cylinder

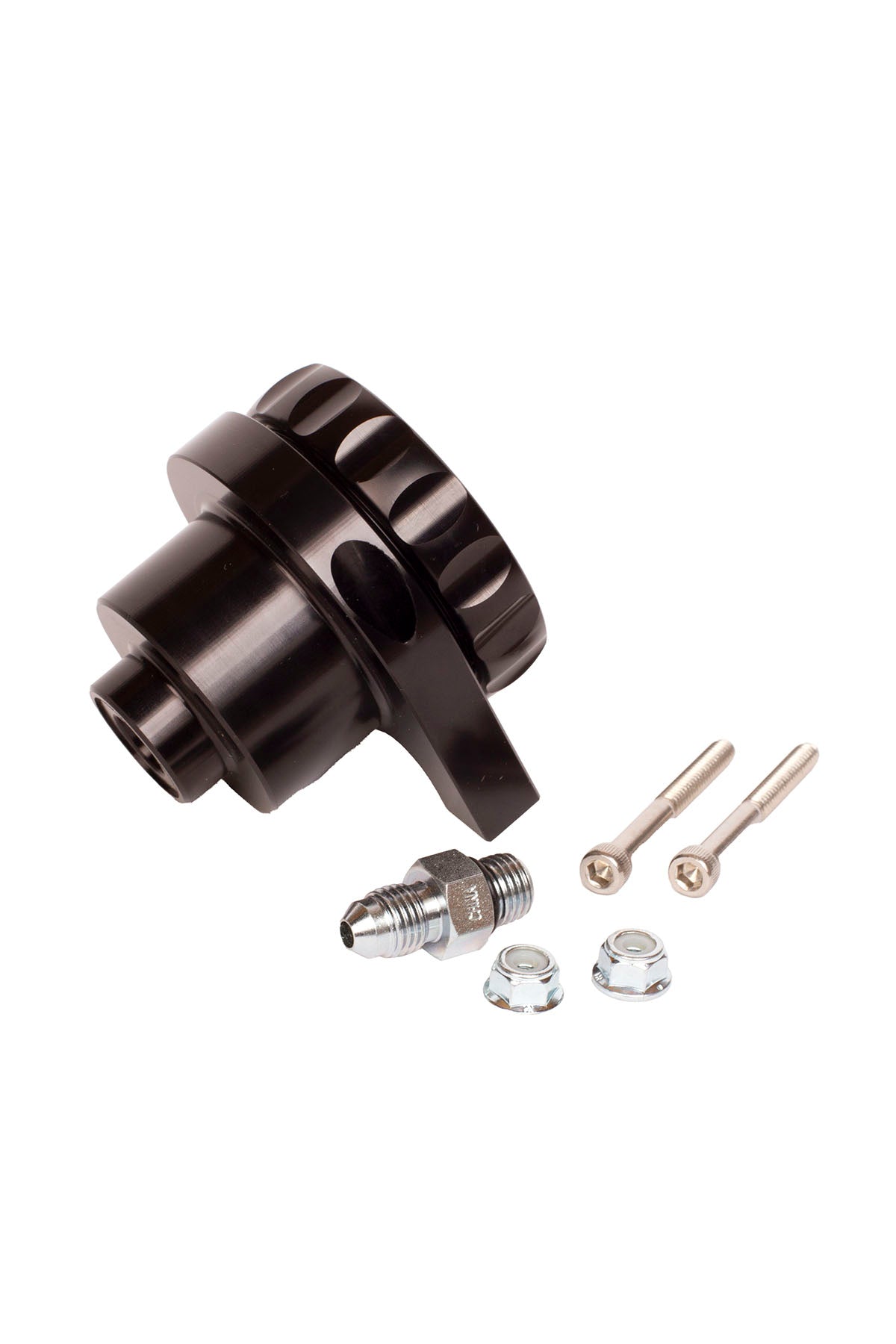

• Black Anodized Aluminum Remote Reservoir
• Perfected Pedal Ratio
• Optimized Master Cylinder Bore Diameter
• For instructions please click.

If using a TR6060 transmission, click here for clutch line adapter fitting.

If using Silver Sports clutch release bearing, click here for adapter fitting.

If using a release bearing with a 4AN hose output, click here for adapter fitting.

We also offer custom built clutch lines spec'd to your application.  Click here to build yours.
