Pro Series Chassis Brake Plumbing Kit, 1967-72 C10

Level 7 developed this brake line kit specifically for the popular 67-72 Pro Touring Chevy C10 Trucks. It was designed to work with Wilwood's Tandem Master Cylinder and combination proportioning valve. This kit can be used on your stock C10 frame only. Please choose your current brake option from the drop down.

The brake lines in this kit follow the factory routing line while adding a clean and modern look on your classic truck.

The lines in this kit feature a PTFE-coated inner lining that is compatible with all fluids and is wrapped in a braided stainless steel cover to resist abrasion and corrosion. Then they are covered with a special PVC coated material for maximum durability against debris and abrasion.  All hoses use stainless steel hose ends for many years of corrosion resistance and durability.  The hoses are all DOT approved and are all crimped by the manufacturer.

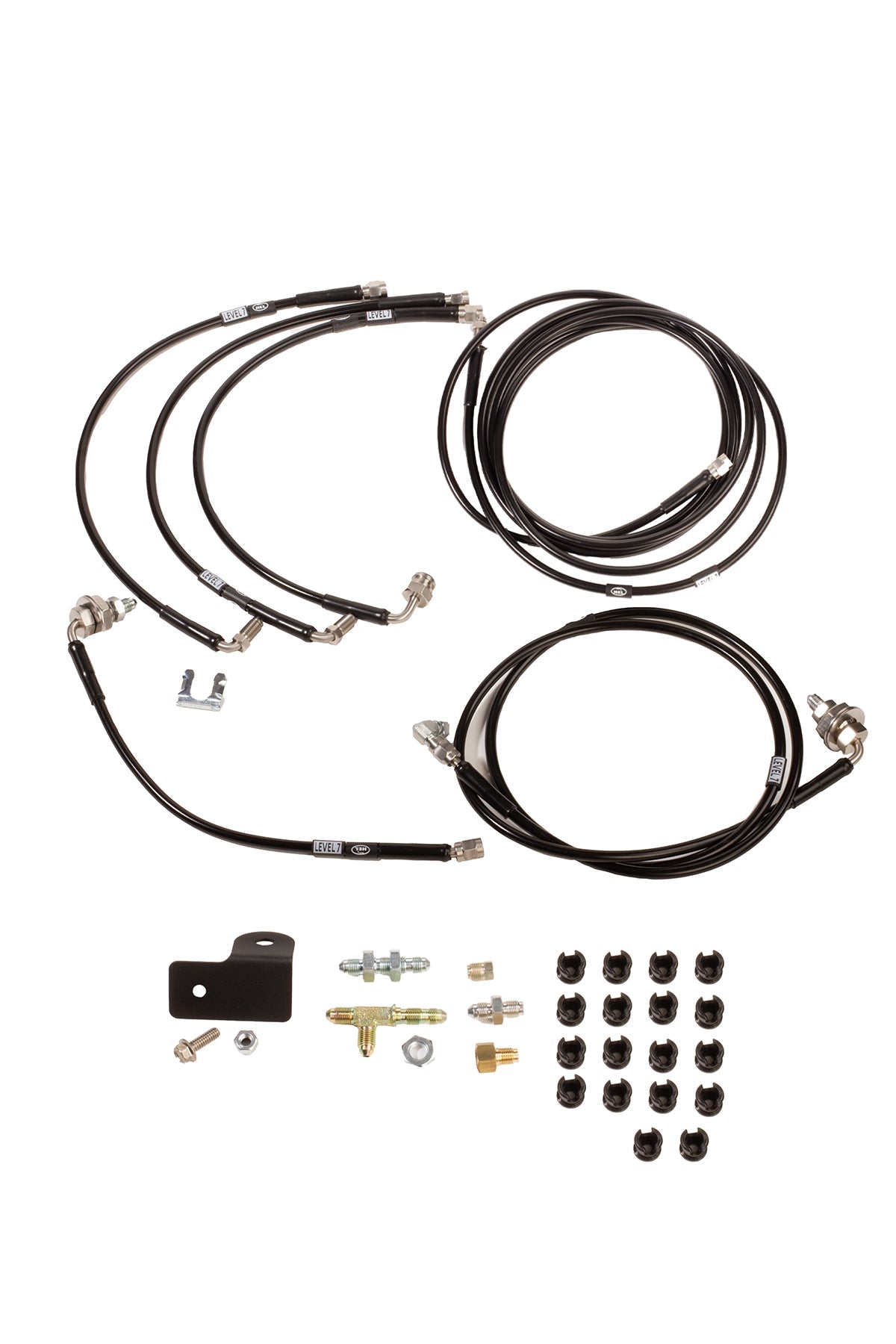

Included in this kit are the hoses from the master cylinder to the chassis, chassis bulkhead fittings and bracket, hoses for the front left and right that terminate exiting the frame, front brake caliper hoses, and a rear hose in two parts that terminates on the factory frame hose bracket.  The front caliper hoses include adapters for 1/8NPT, 7/16"-20, and M10x1.0 inlet calipers.  If you have something other than that please reach out to us before purchase and we can substitute accordingly.  Rear axle plumbing is not included.

• DOT approved hose kit to plumb your factory 67-72 C10 chassis.
• Factory Terminations Sizes
• Optional -3AN Termination Adapters Included
• PTFE Hoses, Stainless reinforced, and silicone coated.
• Black in color
• Assembled in the USA

What's Included

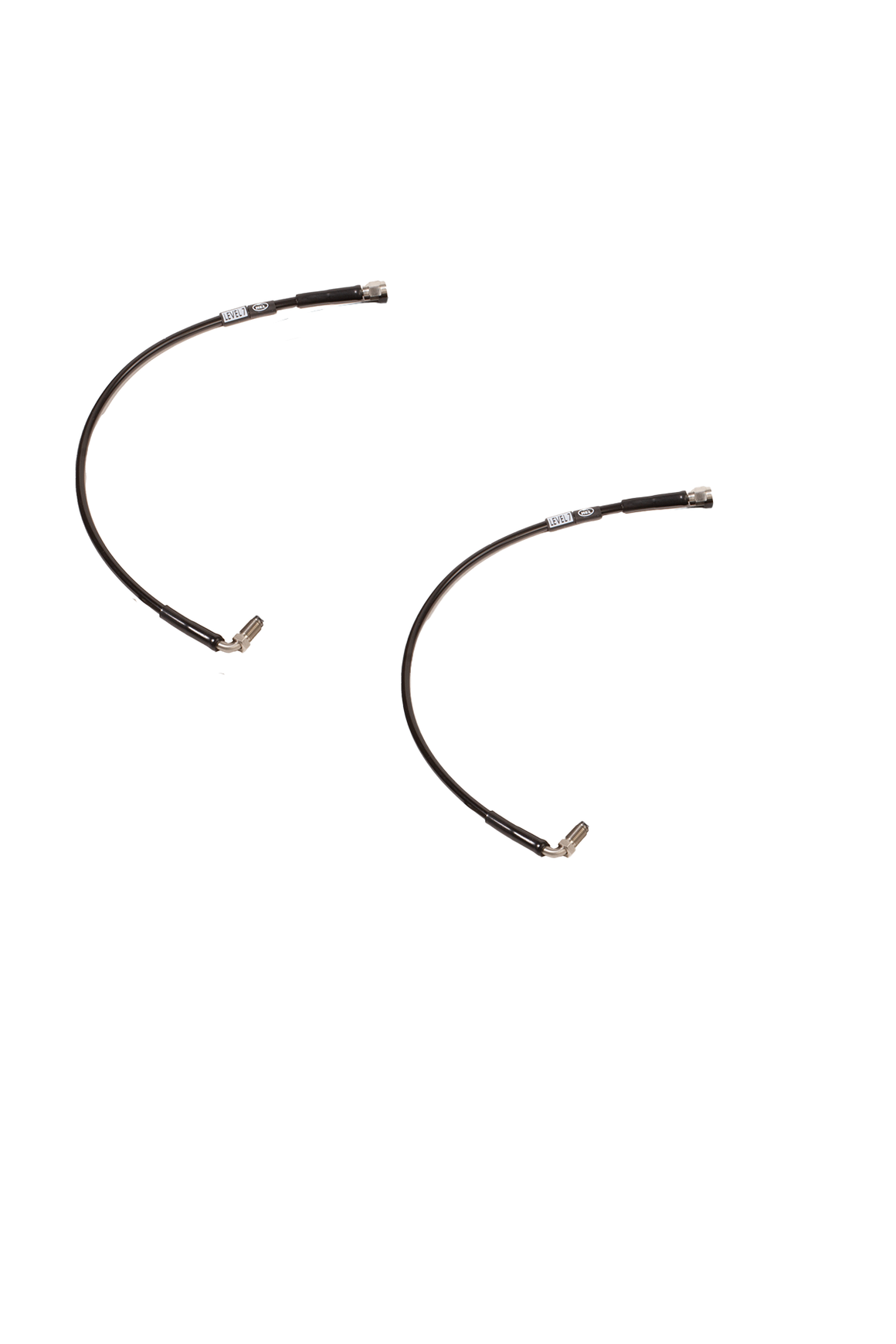

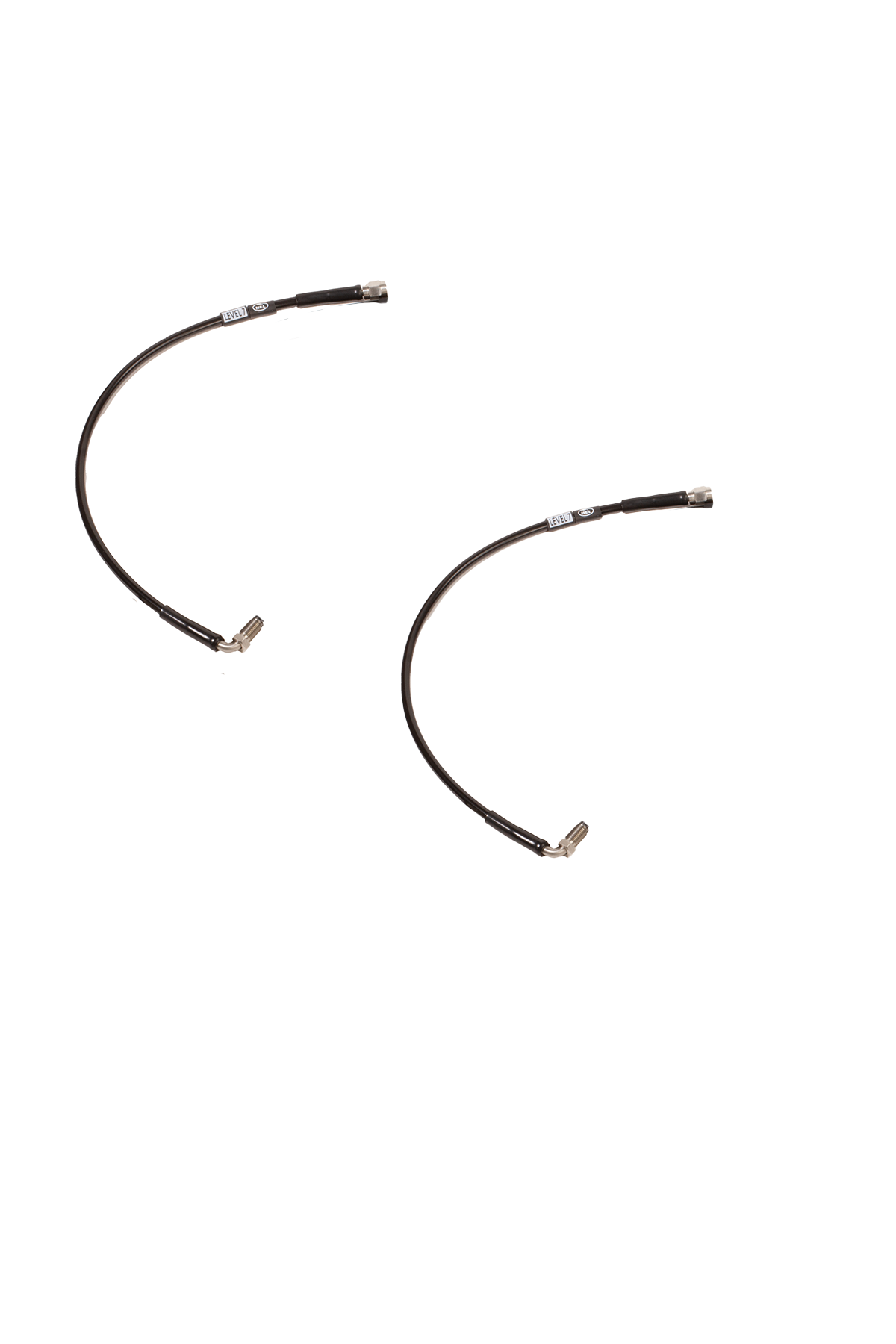

• Hoses 1 & 2, from master cylinder to chassis

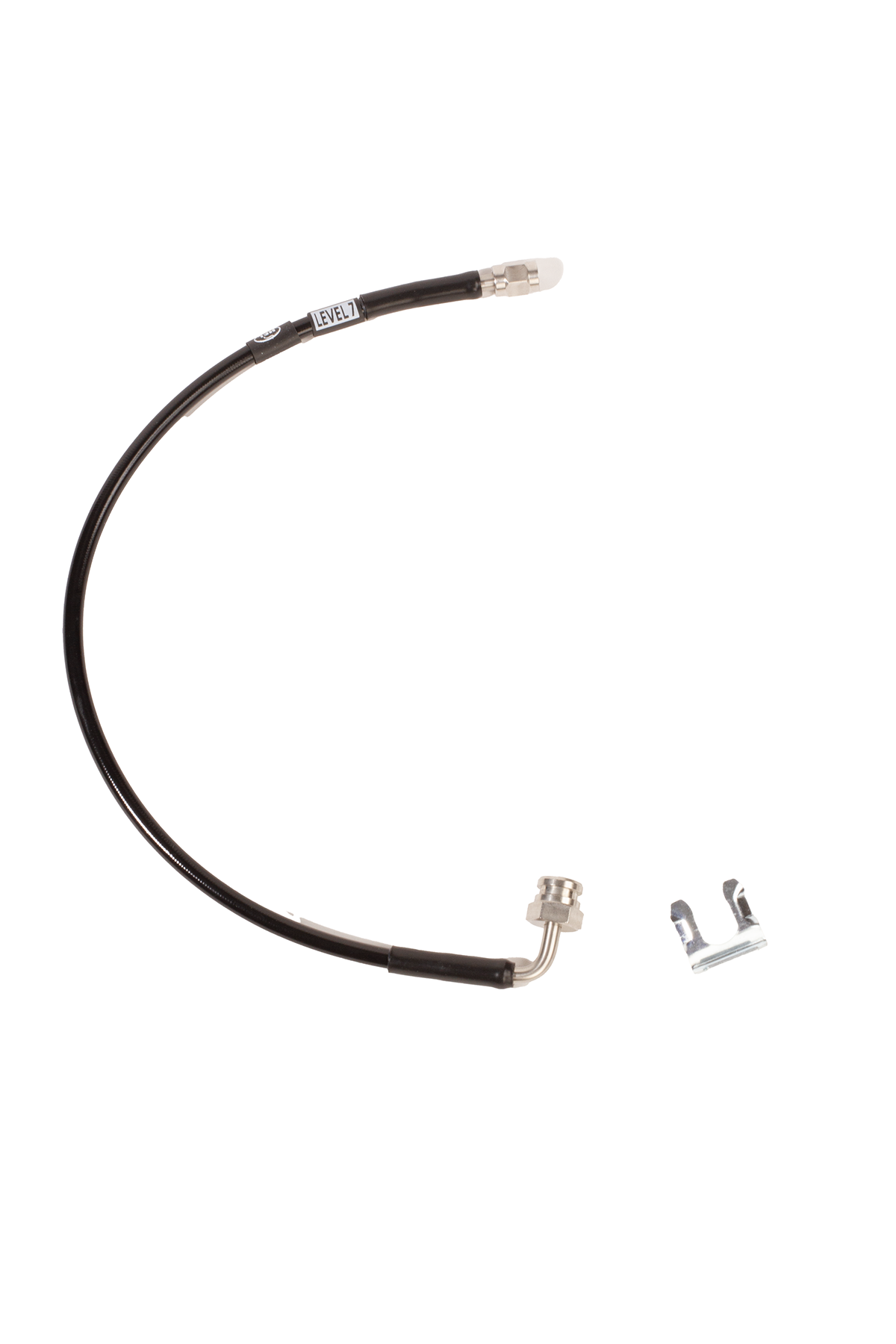

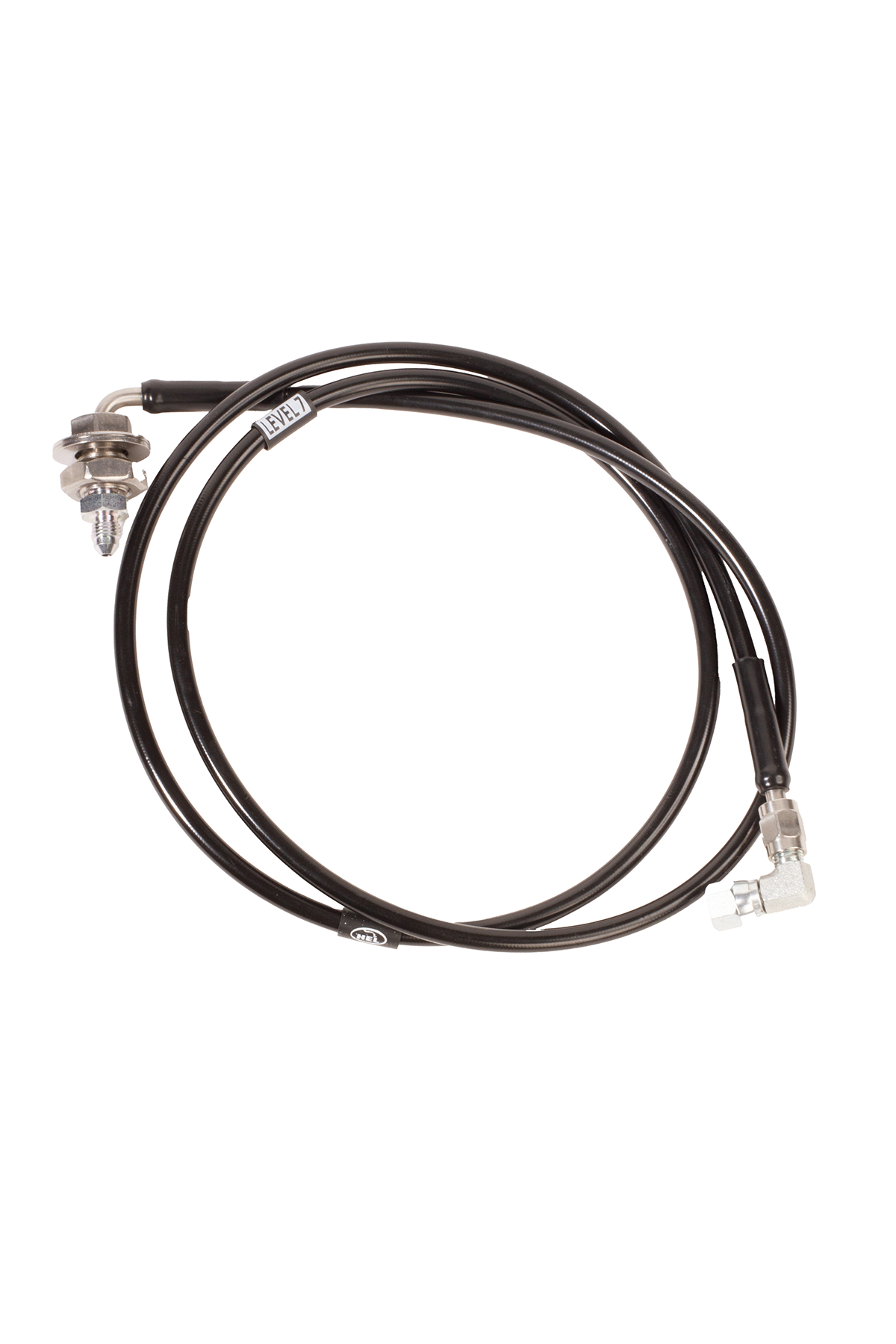

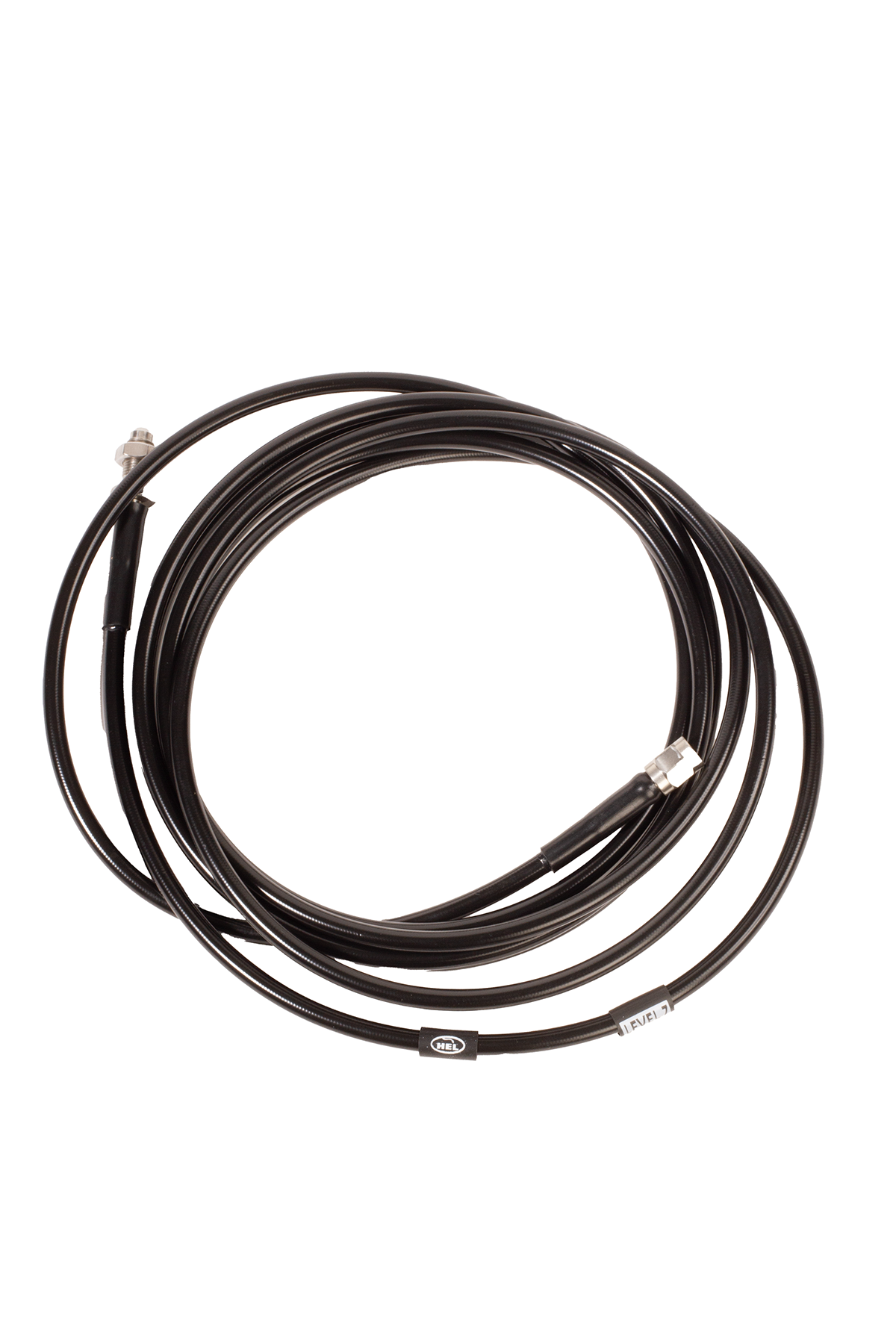

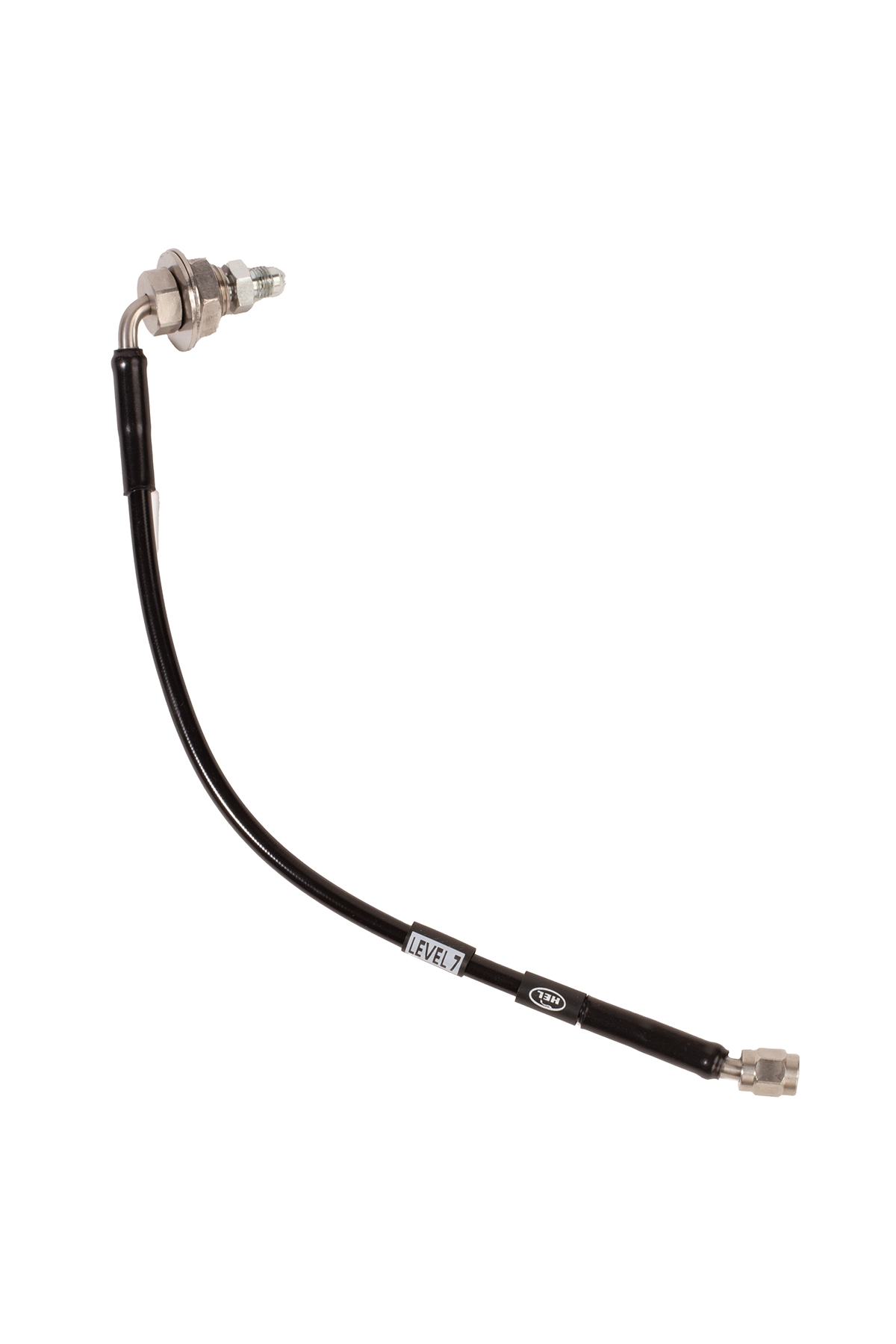

• Hoses 3-6, throughout the frame

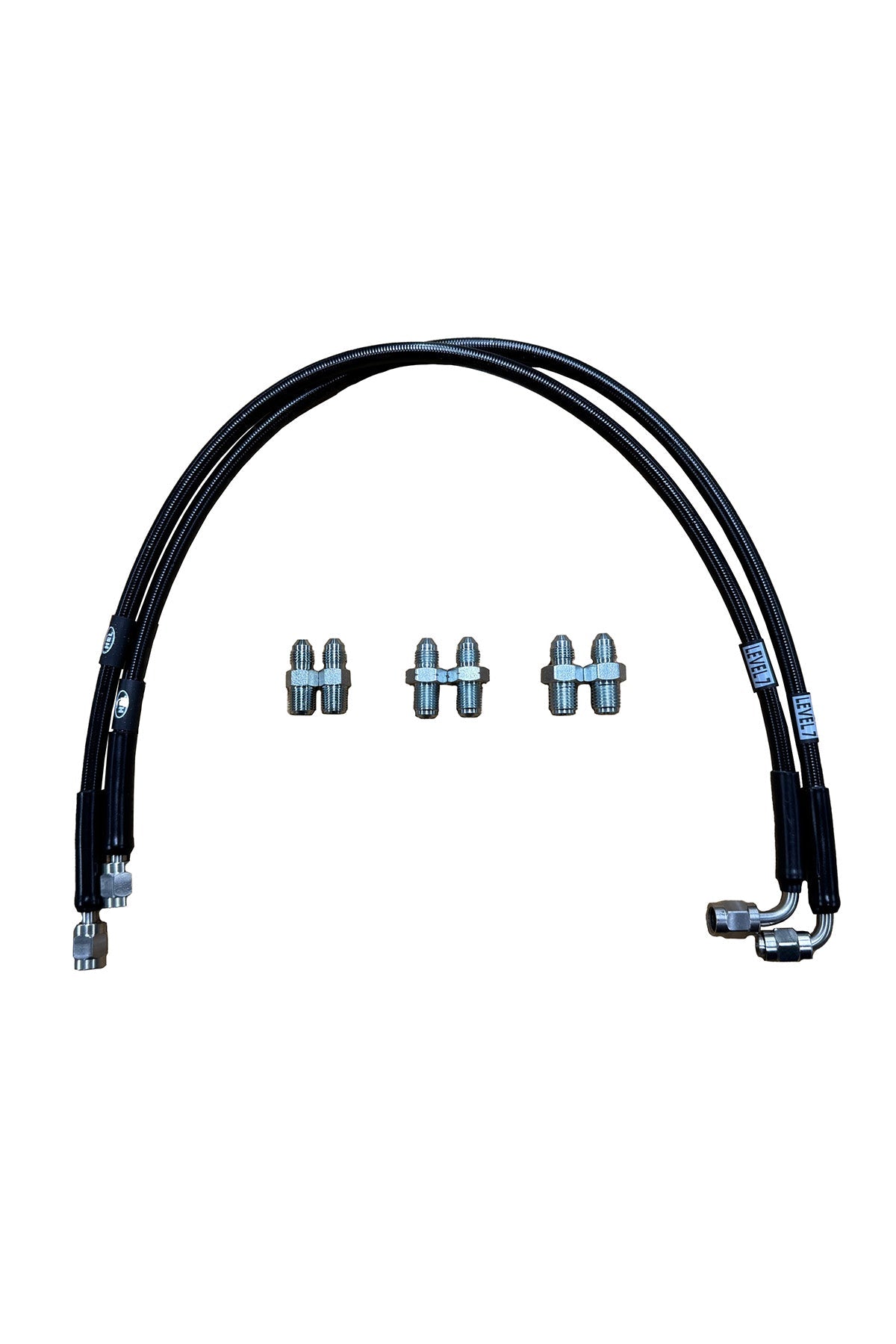

• Front caliper hoses and fittings
• All installation hardware

Notes:

• Rear axle plumbing is not included.
• Front caliper outlet is relocated to the front of the subframe as opposed to the stock location behind the subframe.  This keeps the front caliper hoses from binding.
• Long Bed Option is special order.  7-10 business day lead time.

Product Information and Installation Instructions.
